Patchcord SC/UPC – SC/UPC 50/125 Multimode OM3 Duplex Zip 2.0mm OFNR Aqua

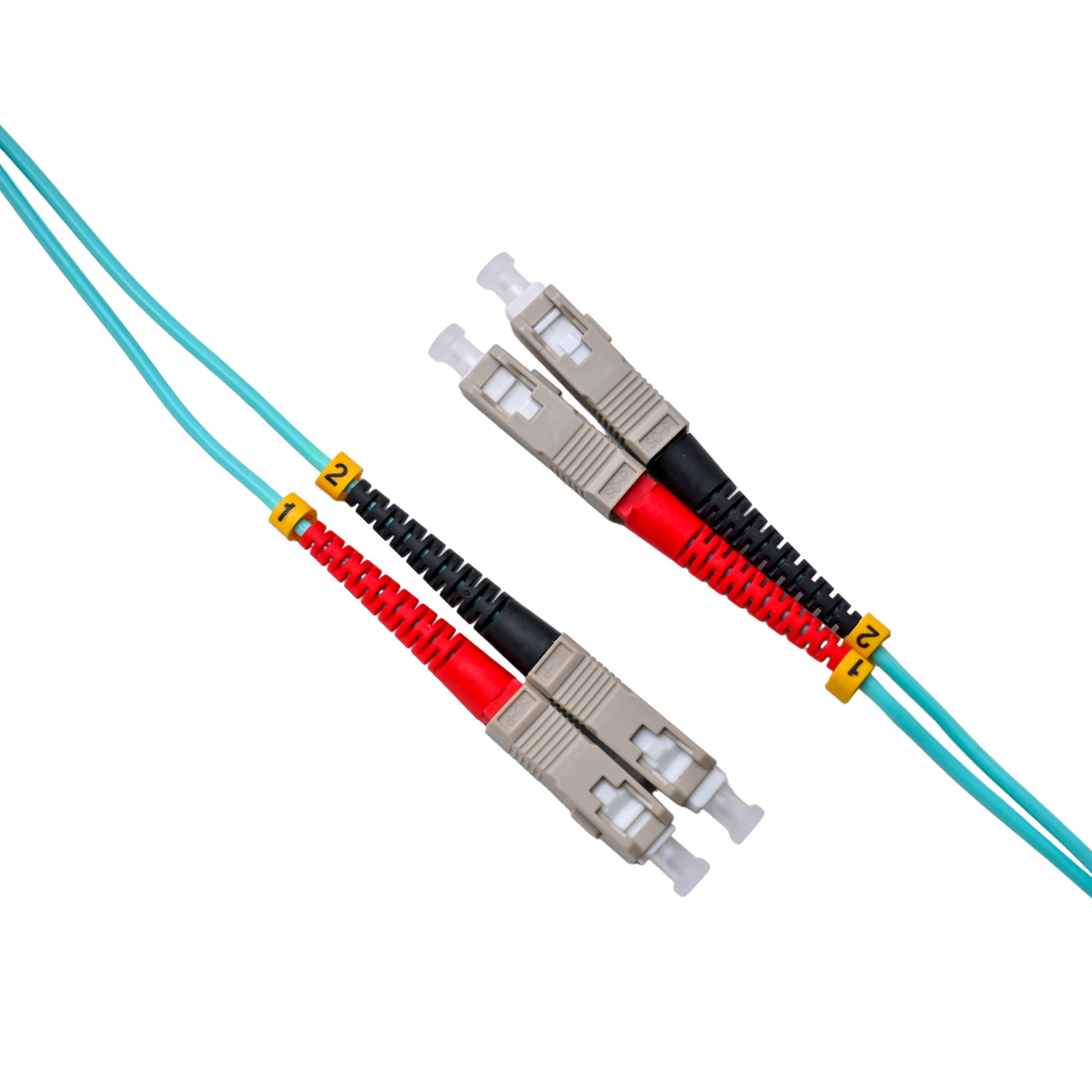

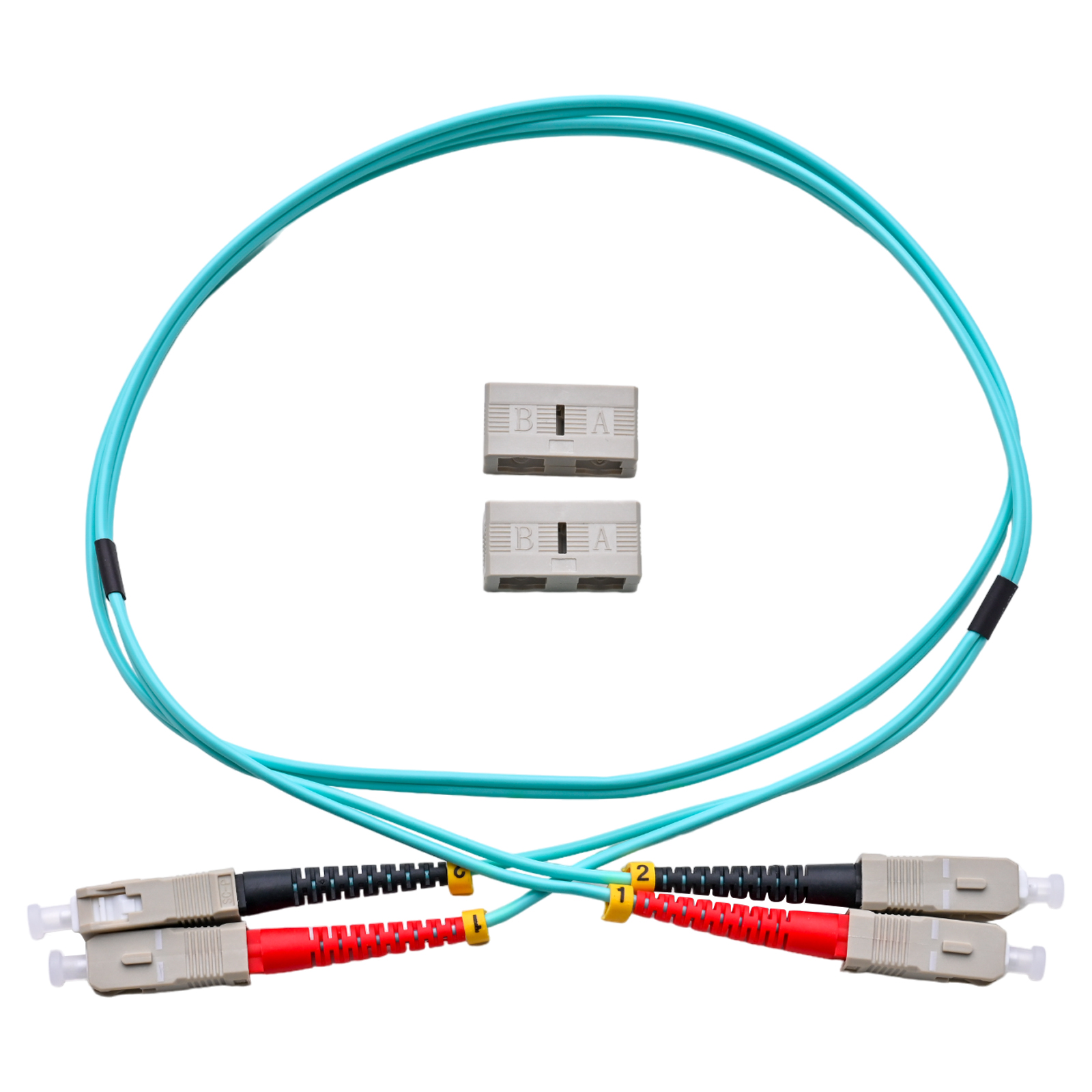

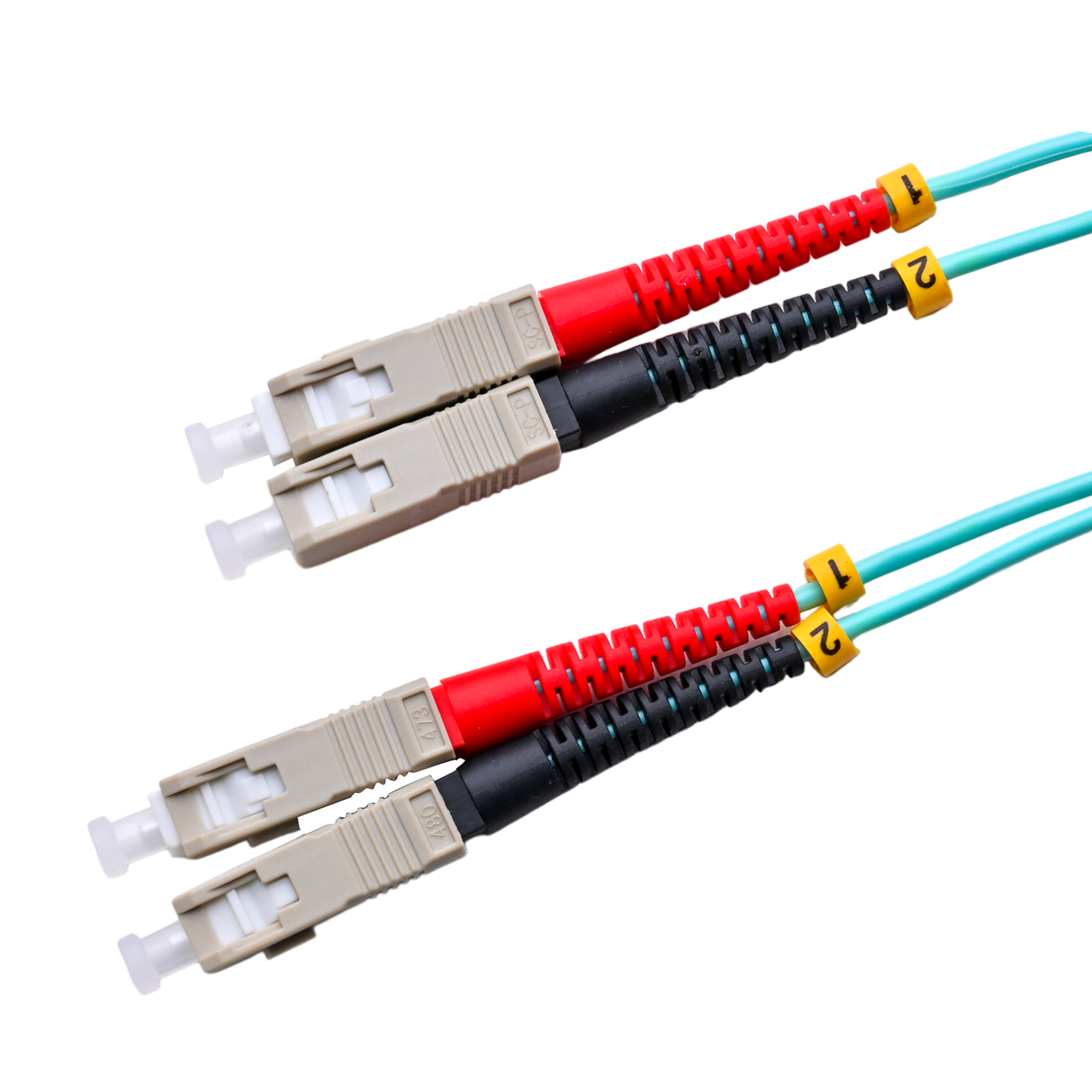

Shaxon’s  SC/UPC – SC/UPC 50/125 OM3 patch cords feature a rugged aqua 2.0.mm duplex zip cord jacket and high quality SC connectors. Polarity is clearly marked with yellow polarity labels. SC connectors are shipped unclipped but do include the clip to be applied in the field if desired.

The SC is a snap-in connector which also features a 2.5mm ferrule much like the ST connector and is known for its excellent performance. The connector is simple, rugged, and low cost. Its simple push on/pull off operations makes it a popular choice.OM3 has a suggested jacket color of aqua. Like OM2, its core size is 50?m, but the cable is optimized for laser-based equipment that uses fewer modes of light. As a result of this optimization, it is capable of 10 Gigabit Ethernet at lengths up to 300 meters. Since its inception, production techniques have improved the overall capabilities of OM3 to enable its use with 40 Gigabit and 100 Gigabit Ethernet up to 100 meters. 10 Gigabit Ethernet is its most common use.

Newer deployments often use laser-optimized 50/125 ?m multi-mode fiber (OM3). Fibers that meet this designation provide sufficient bandwidth to support 10 Gigabit Ethernet up to 300 meters. Optical fiber manufacturers have greatly refined their manufacturing process since that standard was issued and cables can be made that support 10 GbE up to 400 meters. Laser optimized multi-mode fiber (LOMMF) is designed for use with 850 nm VCSELs.When weighing your options between on-premises and access network fiber replacement or new installation, we highly recommend replacing legacy OS1 with a new bend-insensitive OS2 (ITU-T G.657A1) SMF cabling system to support longer reach with enhanced link performance.

For other ultra-long-distance transmissions that employ exclusively C-band and L-band with optical amplifiers, refer to the ITU-T recommendations for the most appropriate SMF types.

Multi-mode fiber is typically cost effective for inside buildings or corporate campuses while single-mode is better suited for longer distance runs. Single-mode fiber can transmit over greater distances but typically requires more expensive equipment. Multi-mode is cost effective for installations where the lengths do not exceed a few hundred meters.The International Telecommunication Union (ITU) is the United Nations specialized agency for information and communication technologies ? ICTs.
