LC/UPC uniboot -LC/UPC uniboot 50/125 Multimode OM3 Round cable 2.0mm OFNR Aqua

Description

LC/UPC uniboot -LC/UPC uniboot 50/125 Multimode OM3 Round cable 2.0mm OFNR Aqua

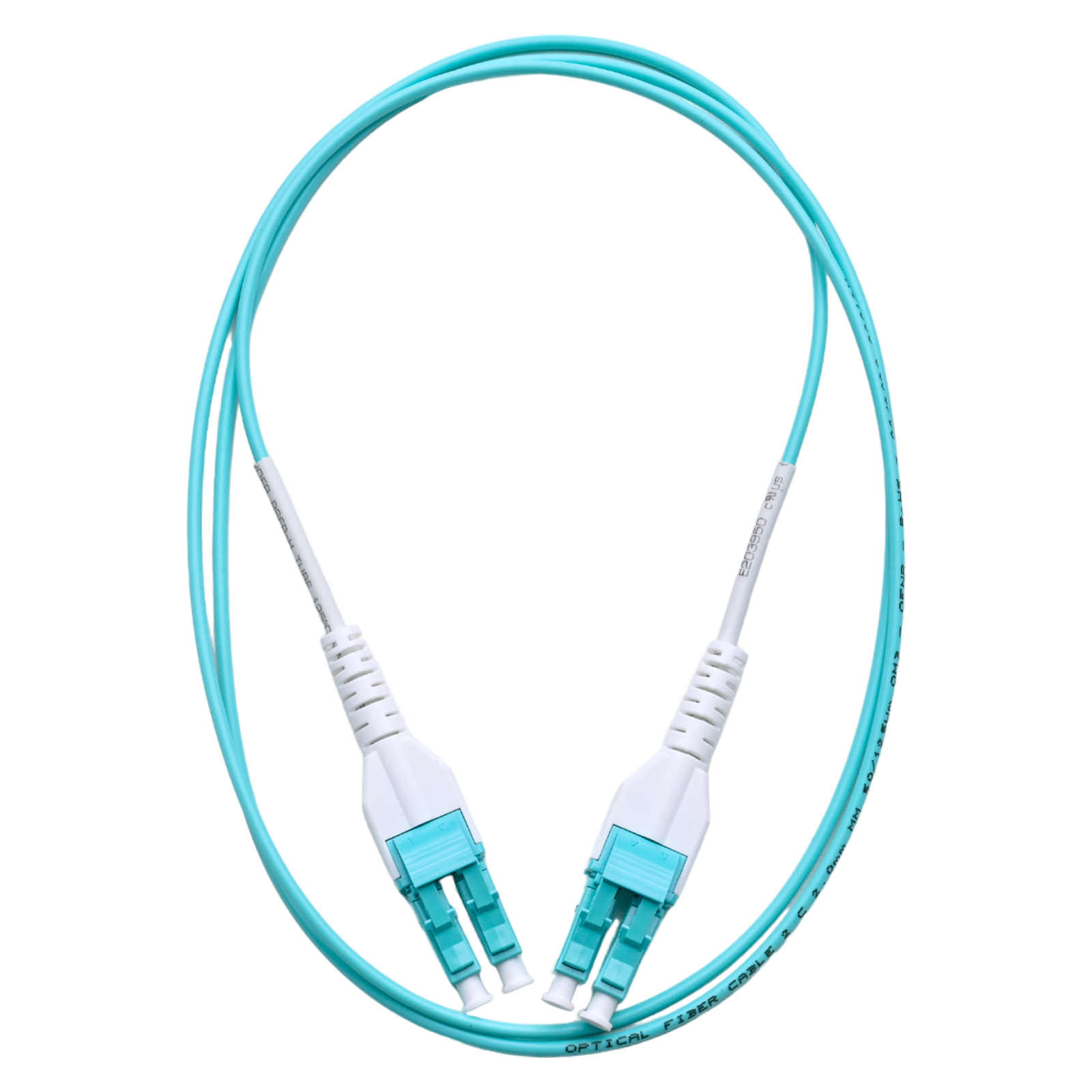

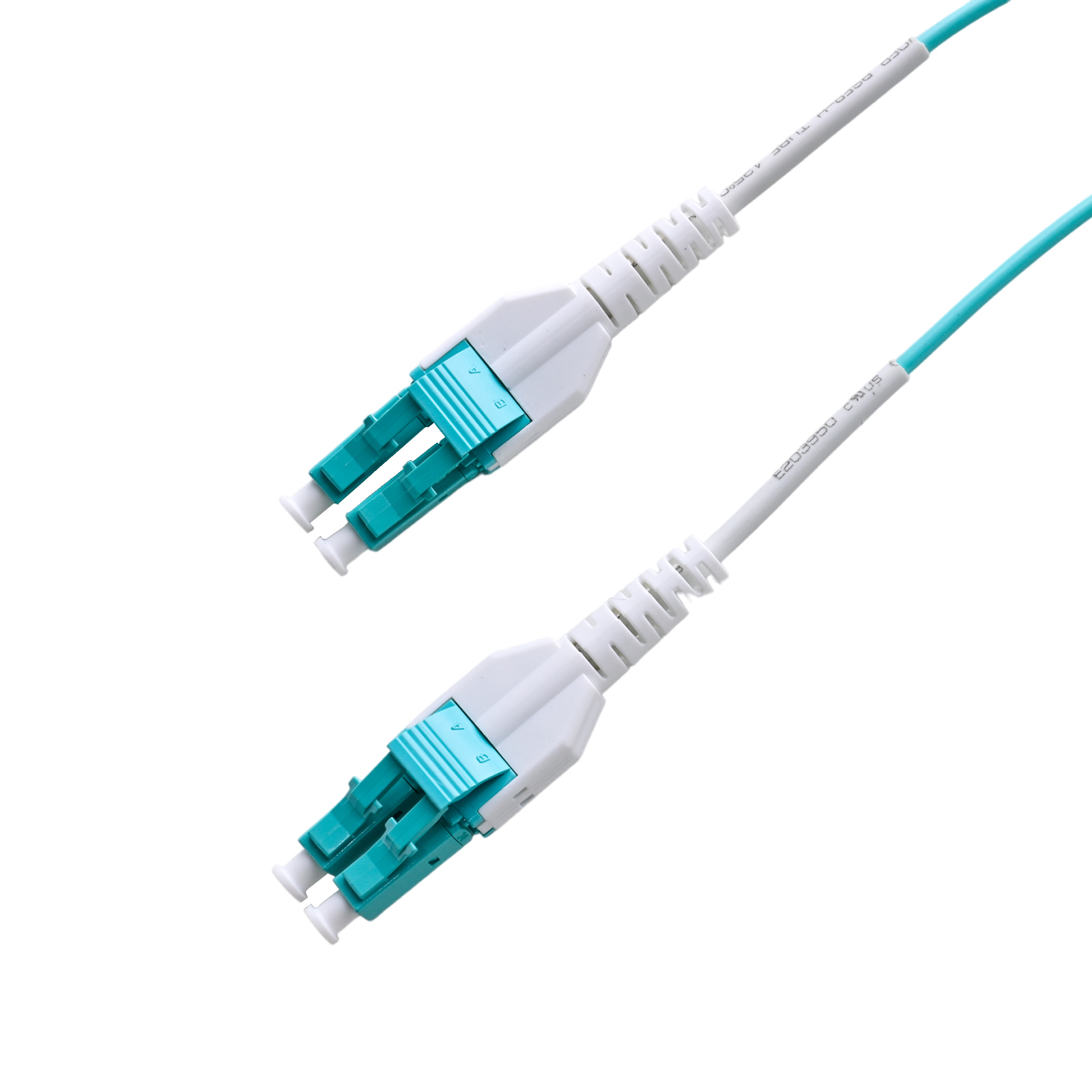

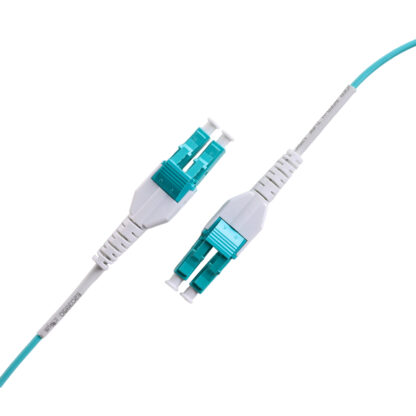

Shaxon’s  LC/UPC uniboot -LC/UPC uniboot Multimode 50/125 OM3 patch cords feature a rugged aqua 2.0.mm round jacket and high quality LC Uniboot connectors. Cable polarity can easily be changed . Polarity is clearly marked with  letters on the clip. Popular in data center applications, the simplex round two fiber 2.0mm cable takes up less room allowing for superior air flow and easier cable management.

The LC connectors are highly popular within single mode networks. It is known for good performance and small size. LC connectors have a 1.25mm ferrule, approximately half the size of SC connectors. It?s also commonly referred to as the little connector. The LC connector is a small form factor (SFF) connector, which is designed to join LC fibers where a connection or disconnection is required.OM3 has a suggested jacket color of aqua. Like OM2, its core size is 50?m, but the cable is optimized for laser-based equipment that uses fewer modes of light. As a result of this optimization, it is capable of 10 Gigabit Ethernet at lengths up to 300 meters. Since its inception, production techniques have improved the overall capabilities of OM3 to enable its use with 40 Gigabit and 100 Gigabit Ethernet up to 100 meters. 10 Gigabit Ethernet is its most common use.

Newer deployments often use laser-optimized 50/125 ?m multi-mode fiber (OM3). Fibers that meet this designation provide sufficient bandwidth to support 10 Gigabit Ethernet up to 300 meters. Optical fiber manufacturers have greatly refined their manufacturing process since that standard was issued and cables can be made that support 10 GbE up to 400 meters. Laser optimized multi-mode fiber (LOMMF) is designed for use with 850 nm VCSELs.When weighing your options between on-premises and access network fiber replacement or new installation, we highly recommend replacing legacy OS1 with a new bend-insensitive OS2 (ITU-T G.657A1) SMF cabling system to support longer reach with enhanced link performance.

For other ultra-long-distance transmissions that employ exclusively C-band and L-band with optical amplifiers, refer to the ITU-T recommendations for the most appropriate SMF types.

Multi-mode fiber is typically cost effective for inside buildings or corporate campuses while single-mode is better suited for longer distance runs. Single-mode fiber can transmit over greater distances but typically requires more expensive equipment. Multi-mode is cost effective for installations where the lengths do not exceed a few hundred meters.The International Telecommunication Union (ITU) is the United Nations specialized agency for information and communication technologies ? ICTs.
