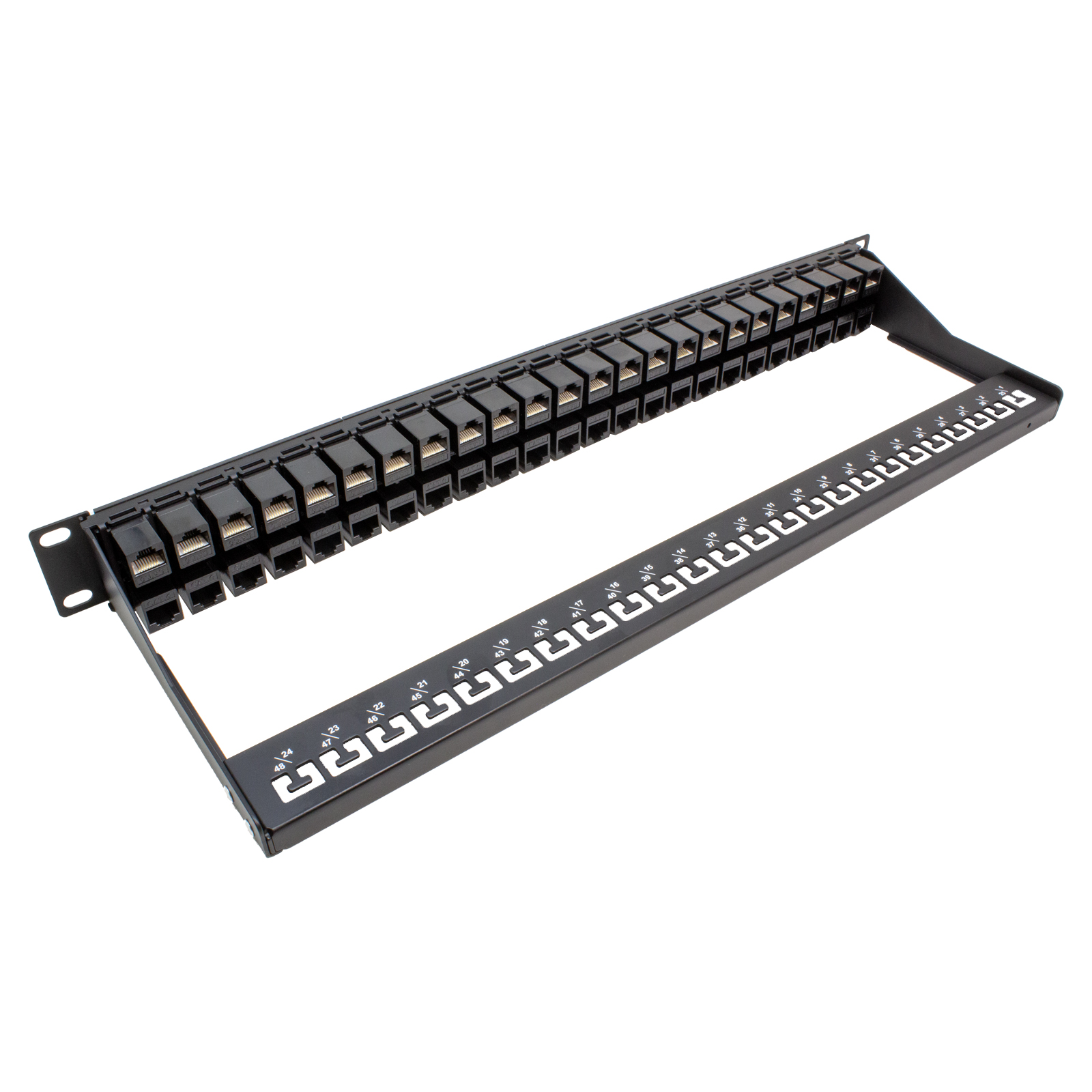

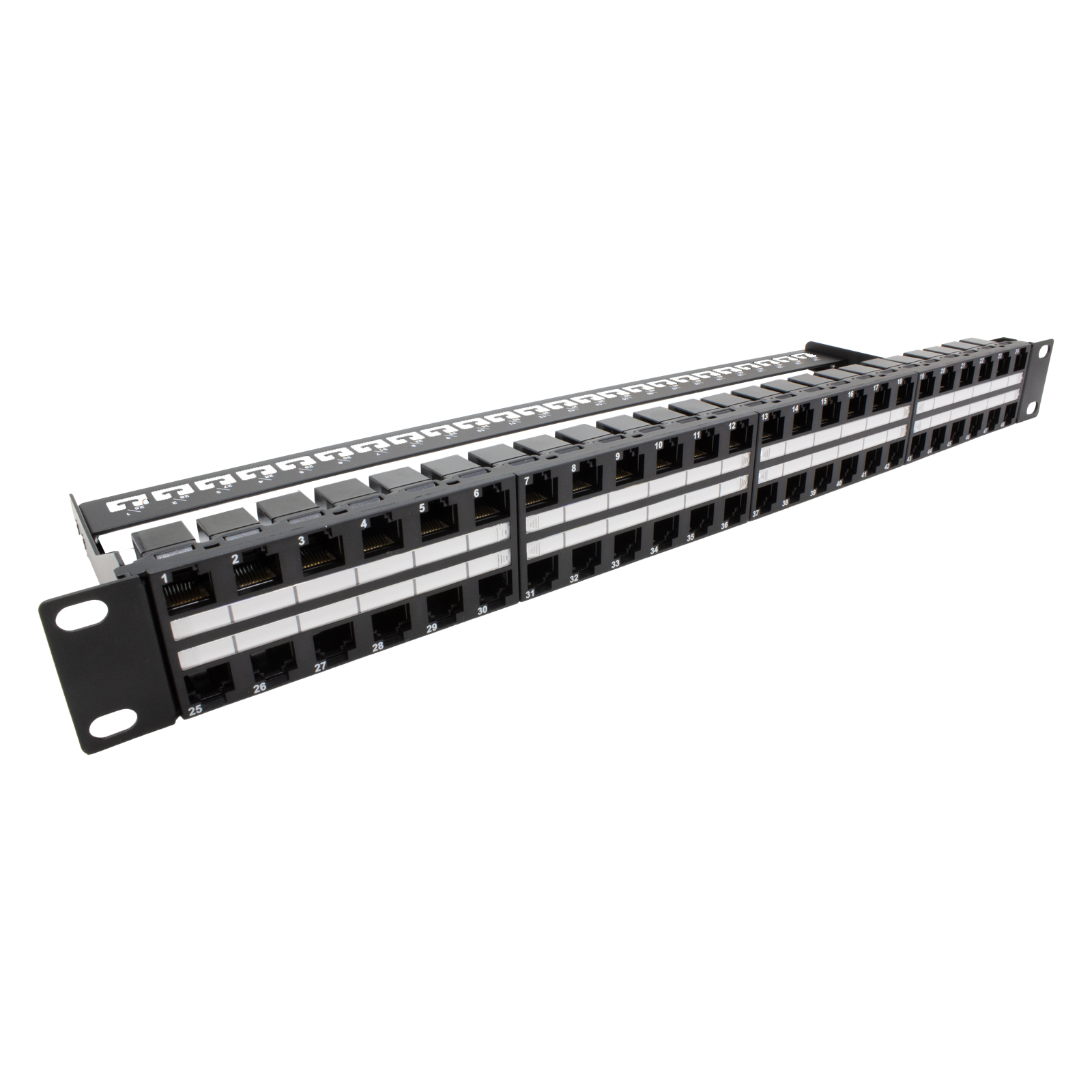

48 Port Ultra High Density 1U loaded CAT6 Premium coupler panel with one wire management bar

Description

48 Port Ultra High Density 1U loaded CAT6 Premium coupler panel with one wire management bar 3.50″H x 19″W x 1.25″D (with wire mgmt bar 6.00″D)

Shaxon’s Ultra High Density 1U loaded CAT6 Premium  Coupler Panels feature 48 Cat6 Keystone RJ45 Female to Female couplers to connect Category 6 Patch Cables back to back for feed-through applications in a max-density 1u design. Our 1U design features an included wire management bar for cable dressing.

Features and benefits:
Ultra High density design for unmatched port density
Included wire management bars with tool-less assembly
Convenient plug and play front and back patching, no termination labor required in the field
Designed for flush mounting of jacks
** Please note that this panel features tab up (top row) and tab down (bottom row) design for maximum density loading.
** this panel design insets the Jack approximately .11 inches from the face of the panel. Most short body plugs with a bump style boot will snap in fine but the bump will be in direct contact with the face of the panel making it more difficult to unplug the cable. Almost all style of long body ( regular) RJ45 plugs and their corresponding boots will not have any issue being easy to unplug. Contact us if you have any questions about your specific application.
